Beryllium Bronze Rod Made In China
Wonder copper, special copper alloy supplier such as beryllium copper, chrome copper, and aluminum bronze. Please leave us mold making such as electroforming, precision casting and pressure casting. We are a manufacturer of special copper alloys. We are committed to research and development and development of new materials, and are working hard to make better metal materials every day.
Made In China
Category:
Aluminum Bronze Alloys
>>> Chemical Composition
| BE(Beryllium) | CO(Cobalt) | Other | CU(Copper) |
| 1.8-2.1 | 0.45 | ≤0.3 | Margin |
>>> Performance
| Density g∕cm3 | Tensile Strength Mpa | Yield Strength Mpa | Conductivity IACS% | Elongation% | Hardness | Thermal Conductivity W∕m. | Softening Temperature （℃) |
| 8.3 | 1100 | 1035 | 18 | 1 | HRC38-44 | 105 | 930 |
>>> Availability
| Product Code | Product Name | Supply Specifications (Diameter/Thickness mm) | Supply Specifications (Length And Width mm) | Product Form |
| C17200 | Beryllium Copper Plate | 8-260 | 300*500 | Casting And Forging Sheet (NGK) |

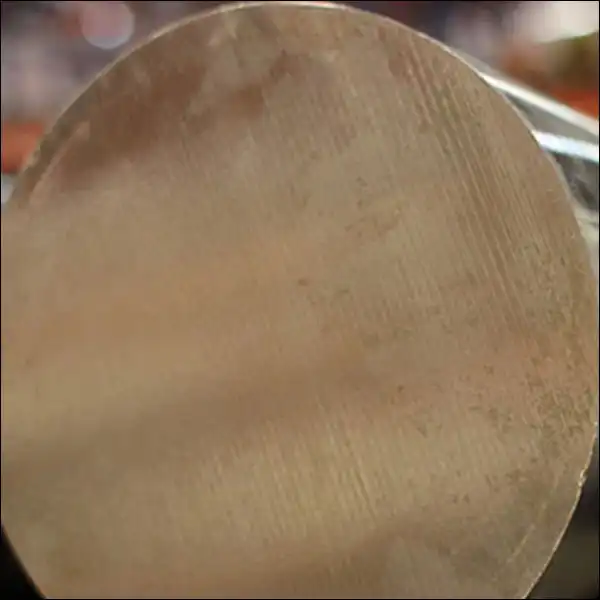

| C17200 | Beryllium Copper Rod | Φ6-Φ50 | 1000 | Extruded Bar (NGK) |
| C17200 | Beryllium Copper Rod | Φ51-Φ220 | 500 | Casting And Forging Bars |
| C17200 | Beryllium Copper Wire | Φ0.06-Φ4.0 | Unlimited Or 2000 | Extruded Bar |
| Product Code | Product Name | Supply Specifications (Diameter/Thickness mm) | Supply Specifications (Length mm) | Product Form |

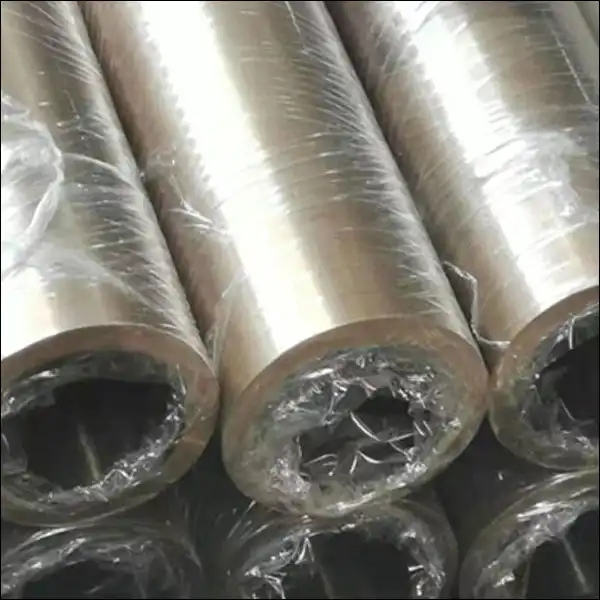

| C17200 | Beryllium Bronze Pipe | The Wall Thickness Is Above 8MM | Less than 300 | Casting Pipe Material |
| C17200 | Beryllium Copper Shaped | According To Customer Dawings | According To Customer Dawings | Casting Special-shaped Materials |
| C17200 | Beryllium Copper Strip | 0.06-1.0 | 200*unlimited | Calendered Strip Material (Made In China) |
| C17200 | Beryllium Copper Strip | 0.06-0.8 | 400*unlimited | Calendering tape (Japan NGK) |
