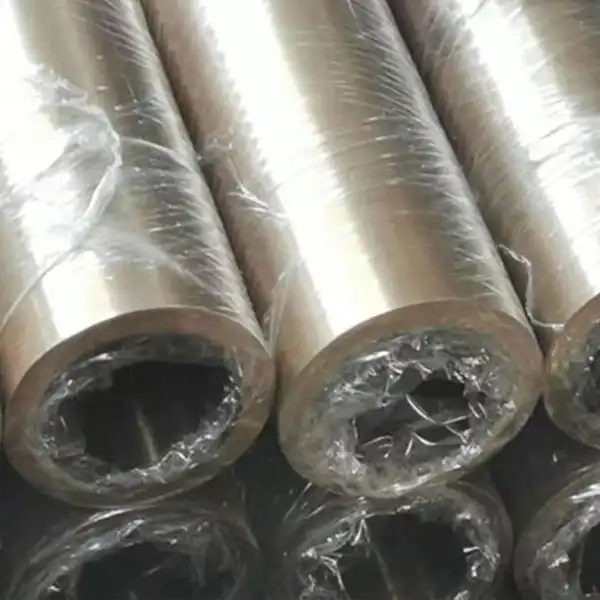

Beryllium Bronze Thin Tube
- 1. Tensile strength, yield strength and hardness are all medium values, good processability, can be used
- 2. High annealing resistance and wear resistance, as well as good thermal conductivity and electrical conductivity
- 3. Excellent mechanical and physical properties, high annealing performance, excellent wear resistance
- 4. High hardness, high wear resistance, can further extend the service life
- 5. High annealing resistance, high thermal and electrical conductivity, and excellent heat resistance at high temperatures
- 6. High precision, high finish, high wear resistance, fatigue resistance 50,000 times without deformation.
Made In China
Made In Japan
Category:
Aluminum Bronze Alloys
>>> Chemical Composition
| BE(Beryllium) | CO(Cobalt) | Other | CU(Copper) |
| 1.8-2.1 | 0.45 | ≤0.3 | Margin |
>>> Performance
| Density g∕cm3 | Tensile Strength Mpa | Yield Strength Mpa | Conductivity IACS% | Elongation% | Hardness | Thermal Conductivity W∕m. | Softening Temperature （℃) |
| 8.3 | 1100 | 1035 | 18 | 1 | HRC38-44 | 105 | 930 |
>>> Availability
| Product Code | Product Name | Supply Specifications (Diameter/Thickness mm) | Supply Specifications (Length And Width mm) | Product Form |
| C17200 | Beryllium Copper Plate | 8-260 | 300*500 | Casting And Forging Sheet (NGK) |

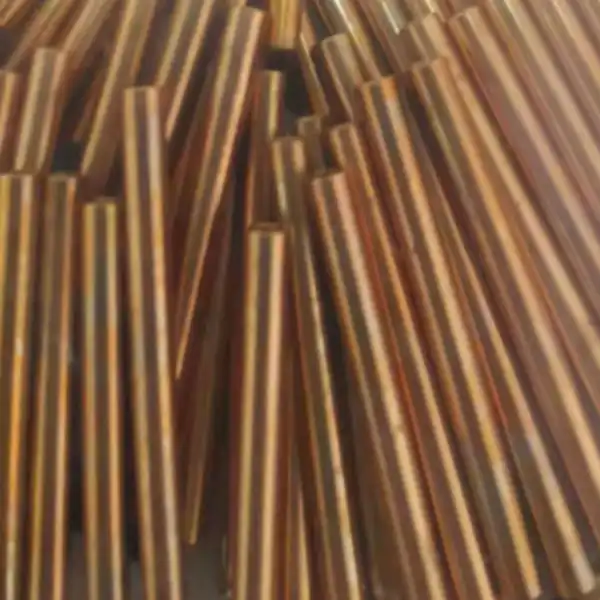

| C17200 | Beryllium Copper Rod | Φ6-Φ50 | 1000 | Extruded Bar (NGK) |
| C17200 | Beryllium Copper Rod | Φ51-Φ220 | 500 | Casting And Forging Bars |
| C17200 | Beryllium Copper Wire | Φ0.06-Φ4.0 | Unlimited Or 2000 | Extruded Bar |
| C17200 | Beryllium Bronze Pipe | The Wall Thickness Is Above 8MM | Less than 300 | Casting Pipe Material |
| C17200 | Beryllium Copper Shaped | According To Customer Dawings | According To Customer Dawings | Casting Special-shaped Materials |
| C17200 | Beryllium Copper Strip | 0.06-1.0 | 200*unlimited | Calendered Strip Material (Made In China) |
| C17200 | Beryllium Copper Strip | 0.06-0.8 | 400*unlimited | Calendering tape (Japan NGK) |
